Touareg 2 V6-3.6L (BHK) (2008)

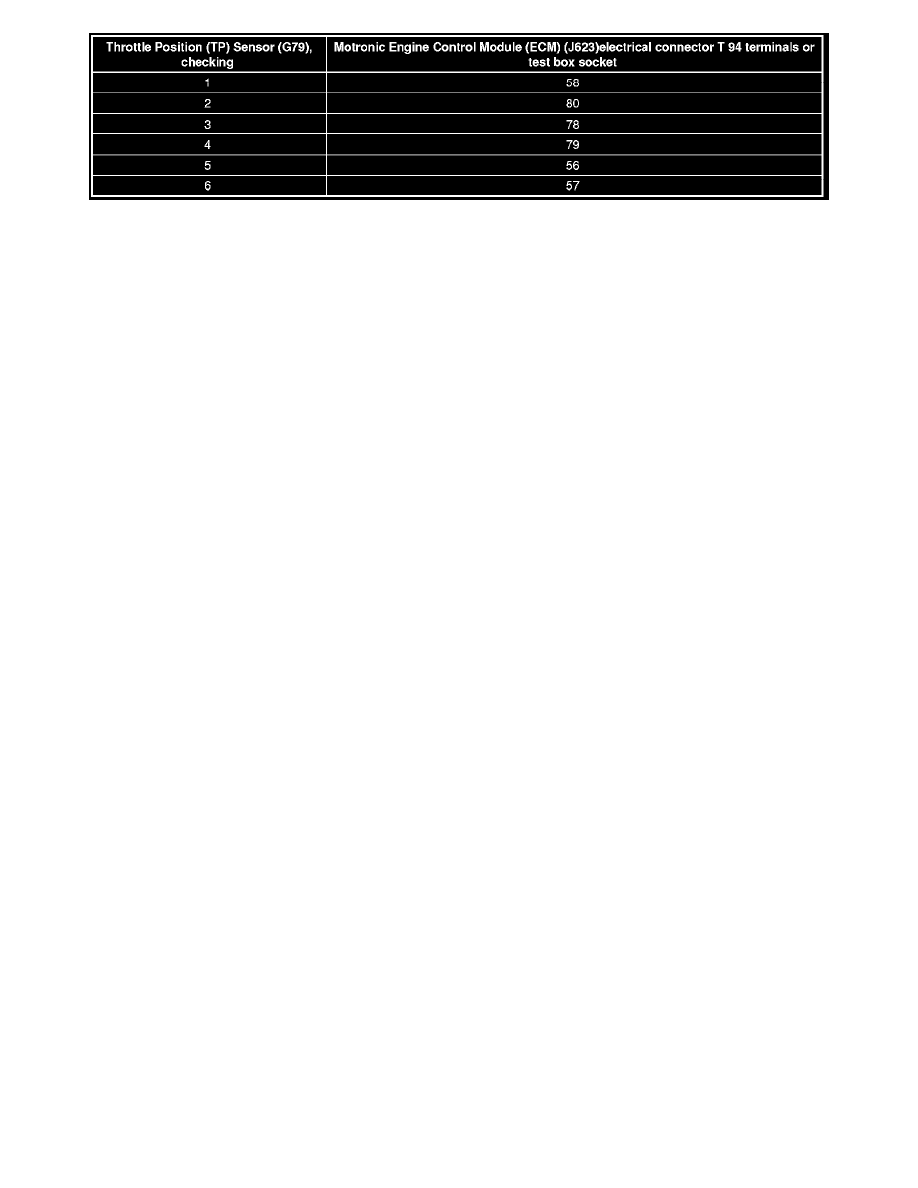

Specified value: 1.5 ohms max.
If the specification is not obtained:
-
Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).
-
Check the electrical harness connector for damage, corrosion, loose or broken terminals.
-
If necessary, repair the faulty wiring connection.
-
Erase the DTC memory. Refer to --> [ Diagnostic Mode 04 - Erase DTC Memory ] See: Testing and Inspection/Scan Tool Testing and
Procedures/Diagnostic Mode 04 - Erase DTC Memory
-
Perform a road test to verify repair.
If the DTC does not return:
Repair complete, Generate readiness code. Refer to --> [ Readiness Code ] See: Testing and Inspection/Monitors, Trips, Drive Cycles and Readiness
Codes.
-
End diagnosis.
If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:
-
Replace the Motronic Engine Control Module (ECM) (J623).
-
Assembly is performed in the reverse of the removal.
Final procedures
After repair work, the following work steps must be performed in the following sequence:
1. Check the DTC memory. Refer to --> [ Diagnostic Mode 03 - Read DTC Memory ] See: Testing and Inspection/Scan Tool Testing and
Procedures/Diagnostic Mode 03 - Read DTC Memory.
2. If necessary, erase the DTC memory. Refer to --> [ Diagnostic Mode 04 - Erase DTC Memory ] See: Testing and Inspection/Scan Tool Testing
and Procedures/Diagnostic Mode 04 - Erase DTC Memory.
3. If the DTC memory was erased, generate readiness code. Refer to --> [ Readiness Code ] See: Testing and Inspection/Monitors, Trips, Drive
Cycles and Readiness Codes.
-
End of diagnosis.
