Up!
|
|

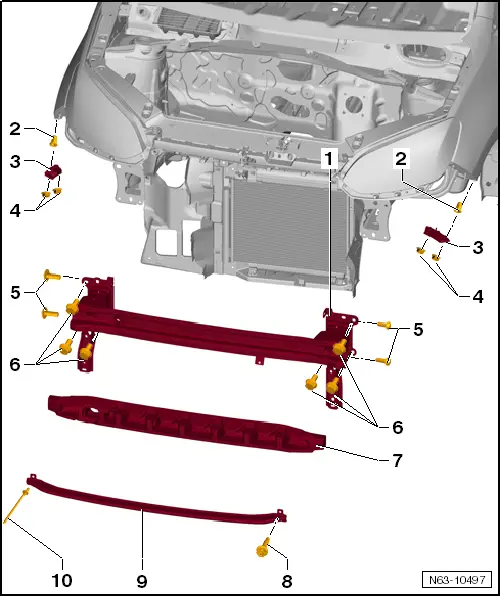

1 - | Front bumper carrier |
2 - | Expanding nut |
q | Qty. 1 on each side. |
3 - | Side guide |
4 - | Hexagon nut |
q | Qty. 2 on each side. |
q | Specified torque: 3 Nm |
5 - | Bolt |
q | Qty. 2 on each side. |
q | Specified torque: 8 Nm |
6 - | Bolt |
q | Qty. 3 on each side. |
q | Specified torque: 20 Nm |
7 - | Foam element |
q | Self-adhesive. |
q | Not installed in all model versions. |
8 - | Bolt |
q | Qty. 1. |
q | Specified torque: 8 Nm |
9 - | Pedestrian protection |
q | Not installed for all markets. |
10 - | Pop rivet |
q | Qty. 1. |
