Removing and installing glove compartment opener
Removing and installing glove compartment opener
  Note
It is not possible to remove the lock cylinder separately. The opening button -2- must be replaced.
Removing

–  Open glove compartment.

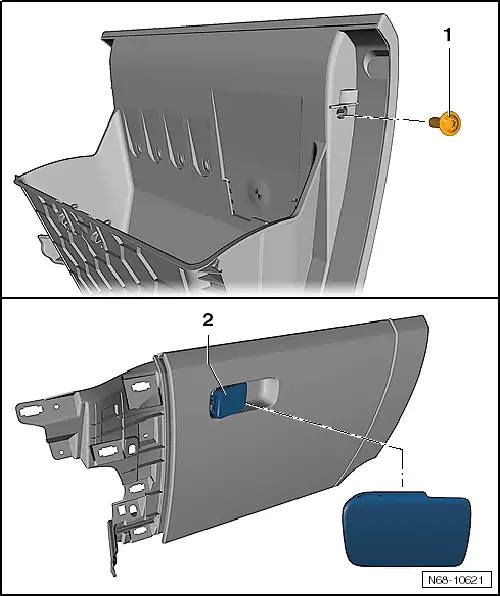

–  Unscrew bolt -1- and remove unlocking button -2- from glove compartment.

Installing
–  Install in reverse order of removal.
