Removing and installing front passenger side airbag warning light
Removing and installing front passenger side airbag warning light
The front passenger side airbag deactivated warning lamp -K145- is integrated in the right switch module in the centre dash panel and can only be renewed together with the hazard warning lights button -E229- and the heated rear window button -E230-.

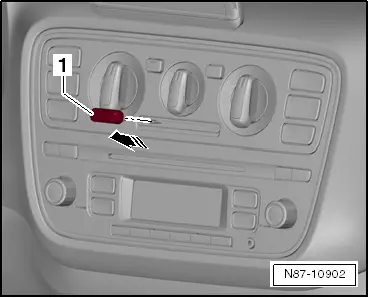

–  Remove sliding control for fresh and recirculated air -1- in -direction of arrow-.
  N87-10902

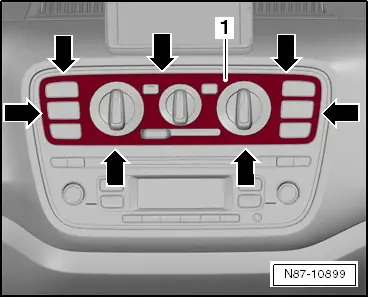

–  Unclip trim -1- using removing wedge -3409- at relevant locations -arrows- and remove trim -1-.
–  Remove right switch module in centre dash panel → Electrical system; Rep. gr.96
.
  N87-10899
