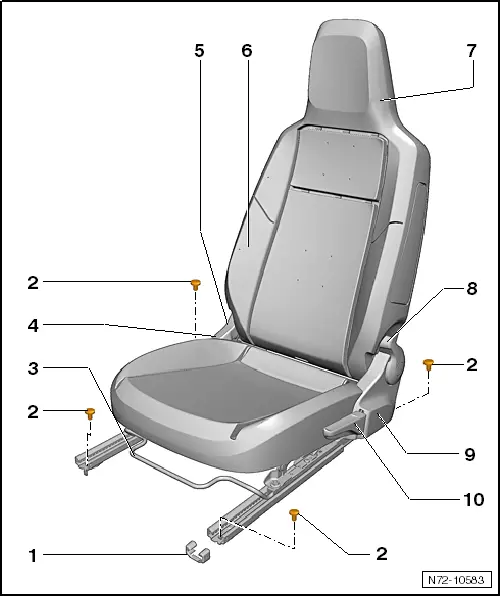

Assembly overview - front seat
Assembly overview - front seat
  Note
The assembly overview is illustrated for the front seat on the driver side. The design for the front seat on the front passenger side is analogous.

1 - Seat rail cover
q   Front left
2 - Bolt
q   40 Nm
q   Qty. 4.
3 - Handle
q   For longitudinal seat adjustment
4 - Trim
q   Tunnel side
q   Removing and installing → Chapter
5 - Seat backrest adjustment lever
q   Tunnel side
q   Removing and installing → Chapter
6 - Backrest
q   With adjustable tilt angle
q   Removing and installing. → Chapter
7 - Head restraint
q   Firmly integrated in seat
8 - Easy Entry lever
q   Sill side
q   Removing and installing → Chapter
9 - Trim
q   Sill side
q   Removing and installing → Chapter
10 - Seat heat adjustment lever
q   Sill side
q   Depending on equipment level
q   Removing and installing → Chapter
