Assembly overview - seat pan

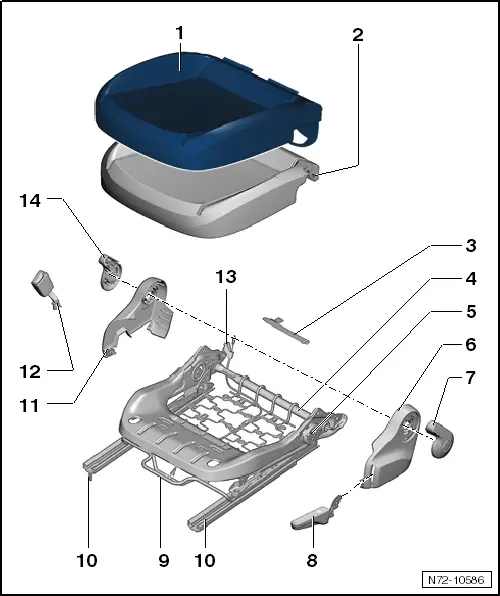

Assembly overview - seat pan
  Note
The assembly overview is illustrated for the front seat on the driver side. The design for the front seat on the front passenger side is analogous.

1 - Seat cover
q   With heating element
q   Without heating element
q   Removing and installing → Chapter
2 - Cushion
q   Removing and installing → Chapter
3 - Seat occupied recognition
q   Removing and installing → Chapter
4 - Seat pan / seat frame
q   Removing and installing → Chapter
5 - Height adjustment
q   Depends on equipment
q   Removing and installing → Chapter
6 - Trim on sill side
q   Removing and installing → Chapter
7 - Lever for Easy Entry
q   A cover is fitted in vehicles without Easy Entry.
q   Removing and installing → Chapter
8 - Lever for seat height adjustment
q   Depends on equipment
q   Removing and installing → Chapter
9 - Longitudinal seat adjustment bar
10 - Seat rails
11 - Trim on tunnel side
q   Removing and installing → Chapter
12 - Belt buckle
q   Removing and installing → Chapter
13 - Easy Entry
q   Depends on equipment
q   Removing and installing → Chapter
14 - Backrest adjustment lever
q   Removing and installing → Chapter
