Replacing and Installing Front Seat Height Adjustment on Car Seats

Removing and installing seat height
Removing and installing seat height
Special tools and workshop equipment required

t  Removing wedge -3409-
  W00-0016

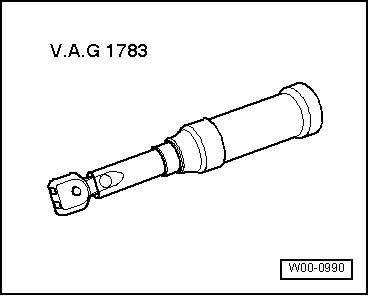

t  Torque wrench -V.A.G 1783-
  W00-0990
t  Torque wrench -V.A.G 1331-
  Note
Removal and installation are described for the left seat. Apply the same instructions analogously for removal and installation of the right seat.
Removing
  Note
If possible, move front seat to highest position. This reduces the spring load when removing and installing the seat height adjustment.
–  Move seat to foremost, highest position and then lower by one stroke.
–  Remove seat trim → Chapter.
  W00-0427

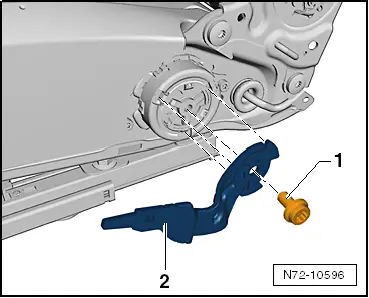

–  Unscrew bolt -1- (19.5 Nm) and remove operating lever -2-.
  N72-10596

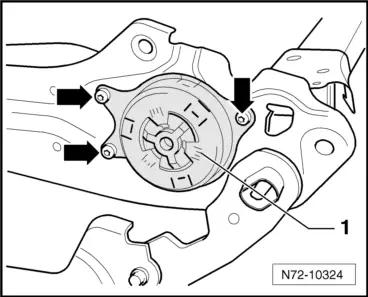

–  Unscrew bolts -arrows-.
–  Release seat height adjustment -1- from seat pan and remove.
Installing
–  Install in reverse order of removal.
–  When fitting seat height adjustment in seat pan, a second mechanic must press front seat down slightly via backrest.
  N72-10324
