Removing and installing „High“ centre decorative trim

Special tools and workshop equipment required

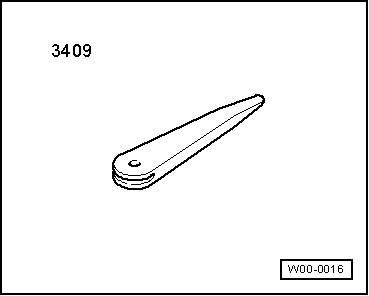

t	Removing wedge -3409-

Removing

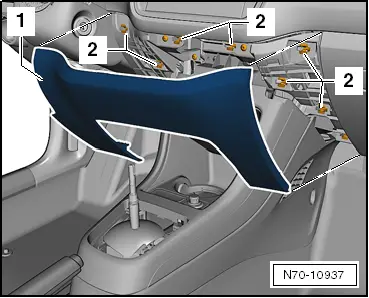

–	Starting at top in vicinity of catches-2-, prise centre dash panel trim -1- out of mountings in dash panel, using removing wedge -3409-.

–	Remove centre dash panel trim -1- from dash panel.

Installing

Note

Before installing, check all fasteners for damage and renew if necessary.

–	Install in reverse order of removal. When doing this, observe the following:

–	All mountings for trim must be properly engaged in catches -2- of dash panel with retaining clips.
