Assembly overview - C-pillar trim
Assembly overview - C-pillar trim
  Note
The installation location is illustrated for the left vehicle side. The installation location for the right side is analogous.

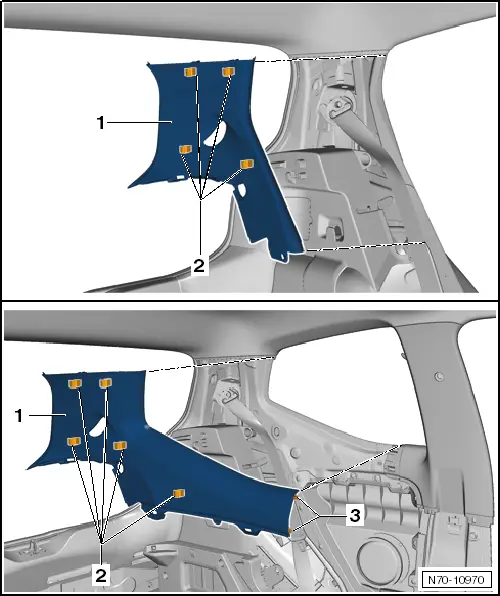

1 - C-pillar trim
q   Top figure, removing, 4-door model → Chapter
q   Bottom figure, 2-door model → Chapter
2 - Retaining clip
q   Renew if damaged.
3 - Retainer tabs
q   Connection to overlap to B-pillar trim
