Removing and installing pedal cluster
Removing and installing pedal cluster
Removing:

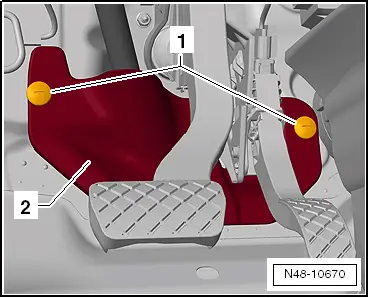

–  Unscrew bolts -1- and remove footwell trim -2-.
–  Pull connector off accelerator pedal position sender.
–  Separate brake pedal from brake servo → Chapter.
  N48-10670

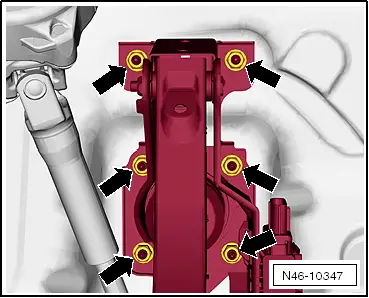

–  Remove hexagon nuts -arrows- from pedal cluster.
–  Remove foot pedal cluster.
Installing:
Install in reverse order.
–  Clip brake pedal to brake servo → Chapter.
  N46-10347
