| Assembly overview - front brake caliper |
| t | When carrying out repairs, install all parts supplied in repair kit. |
| t | Use only methylated spirits for cleaning the brake. |
| t | Apply thin coat of assembly paste G 052 150 A2 to brake cylinder, piston and sealing ring. |

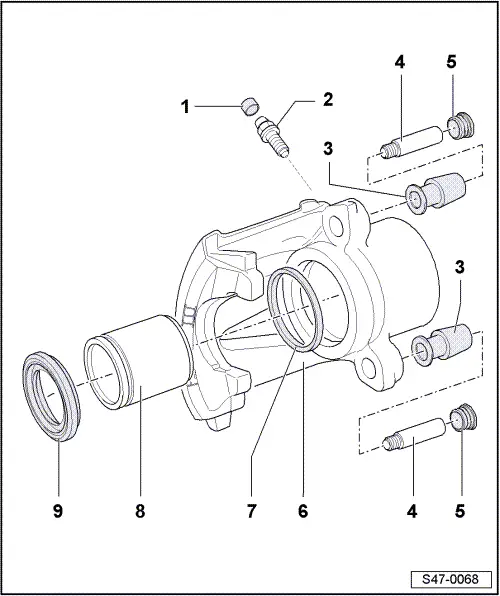

| Assembly overview - brake caliper FS III: |
| 1 - | Dust cap |
| q | Fit onto bleeder valve. |
| 2 - | Bleeder valve, 10 Nm |
| q | Apply thin coat of assembly paste G 052 150 A2 to thread before screwing in. |
| 3 - | Bearing bush |
| q | Insert into brake caliper. |
| 4 - | Guide pin, 30 Nm |
| 5 - | Cover caps |
| q | Insert into bearing bush. |
| 6 - | Brake caliper |
| 7 - | Sealing ring |
| q | Removing and installing → Chapter. |
| 8 - | Piston |
| q | Apply thin coat of assembly paste G 052 150 A2 to piston before installing. |
| q | Removing and installing → Chapter. |
| 9 - | Sealing ring |
| q | Removing and installing → Chapter. |
