Rear brake (drum brake)
Rear brake (drum brake)
Rear brake (drum brake)

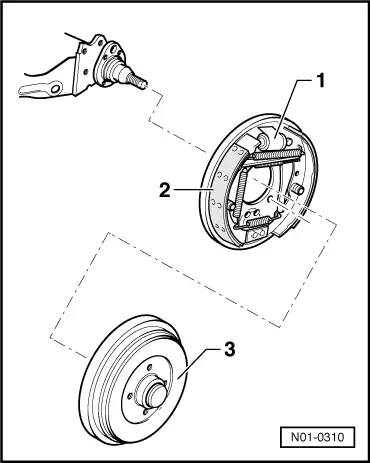

Item
PR No.
1KM
1
Wheel brake cylinder
mm
17.64
2
Brake pad, width
mm
40
Brake pad, thickness
mm
5
Brake pad, minimal thickness
mm
2.5
3
Brake drum
Ø in mm
200
Brake drum, wear limit
Ø in mm
201.5
