Renewing right-hand drive shaft seal

Renewing right-hand drive shaft seal

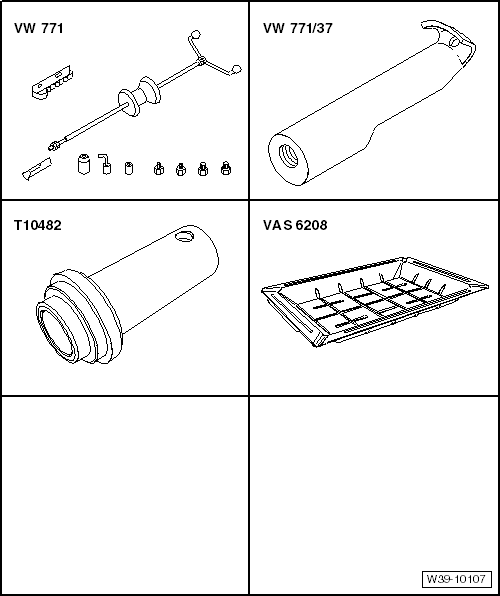

Special tools and workshop equipment required
t  Multipurpose tool -VW 771-
t  Puller hooks -VW 771/37-
t  Thrust piece -T10482-
t  Drip tray for workshop hoist -VAS 6208-

Removing
–  Place drip tray under gearbox.

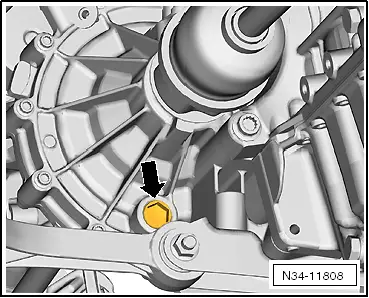

–  Drain gearbox oil -arrow- → Chapter.
–  Remove drive shaft → Running gear, axles, steering; Rep. gr.40.
  N34-11808

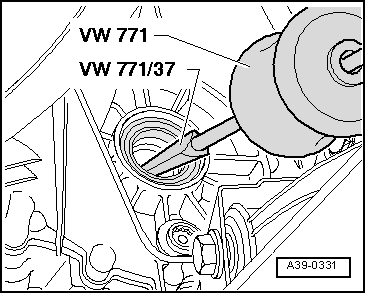

–  Pull out drive shaft seal using -VW 771- and -VW 771/37-.
  A39-0331
Installing

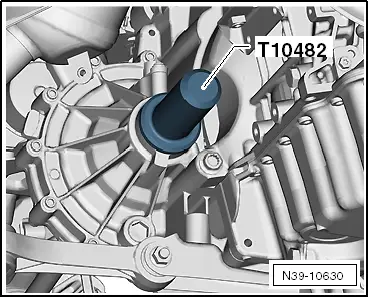

–  Drive in new seal to stop, being careful not to cant seal.
  N39-10630

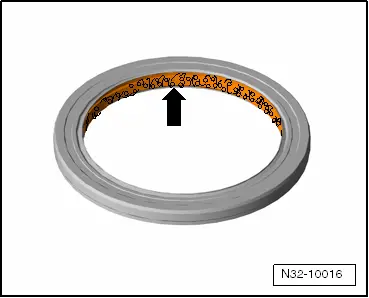

–  Half-fill space between sealing lip and dust lip with sealing grease -G 052 128 A1-.
–  Install drive shaft → Running gear, axles, steering; Rep. gr.40.
–  Fill with gear oil → Chapter.
  N32-10016
