Transporting 5-Speed Manual Gearbox for Improved Power Transmission

Transporting gearbox
Transporting gearbox

–  Bolt gearbox lifting tackle -3336- to clutch housing.
  A34-0320

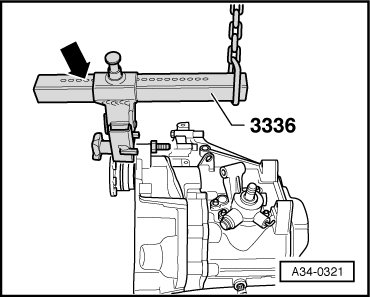

–  Adjust support beam on sliding piece using locking pin -arrow-.
No. of holes visible = 5
–  Lift gearbox using workshop crane and gearbox lifting tackle -3336-.
–  Set gearbox aside, for example in a transport container.
  A34-0321
