Removing and installing engine speed sender Special tools and workshop equipment required

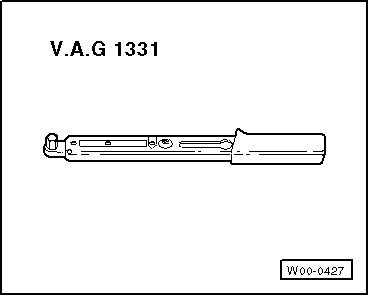

t  Torque wrench -V.A.G 1331-

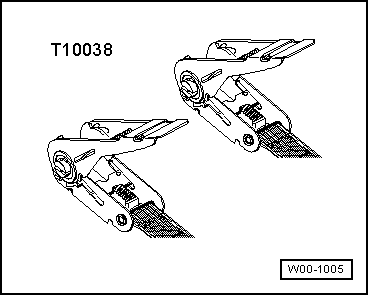

t  Tensioning strap -T10038-

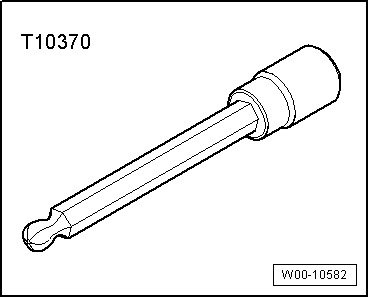

t  4 mm socket insert -T10370-

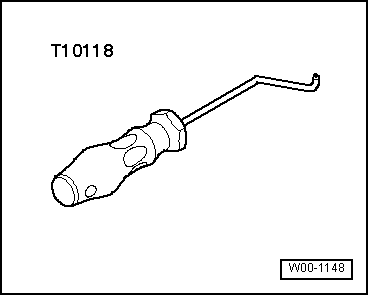

t  Assembly tool -T10118- Removing Fitting location → Item.

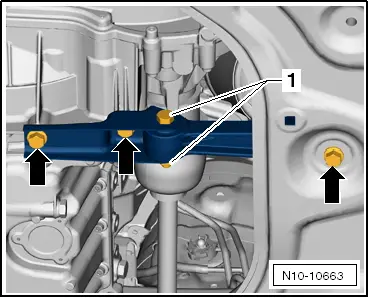

–  Remove securing bolts -arrows- of pendulum support.   Caution Bolt -1- must not be loosened.

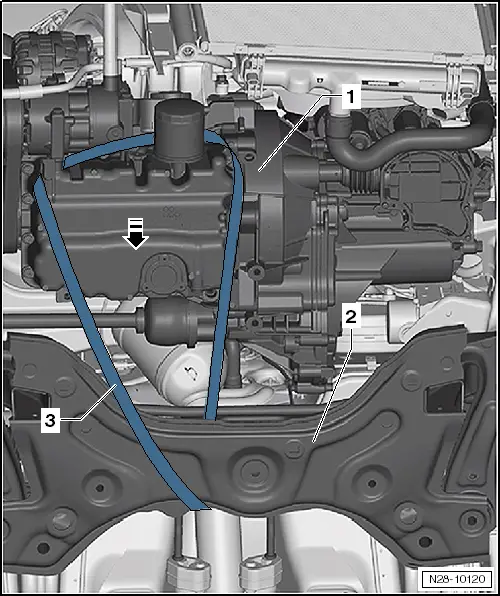

–  Fit tensioning strap -T10038--3- to engine -1- and subframe -2- as shown. –  Pull engine -1- in -direction of arrow- using tensioning strap -T10038-.   WARNING Ensure that there is sufficient clearance to the bodywork.

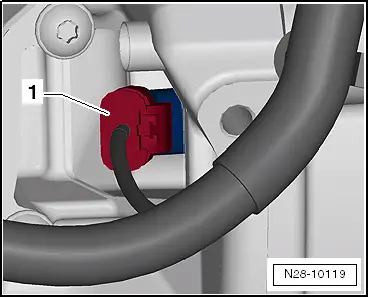

–  Release and pull off connector -1-.

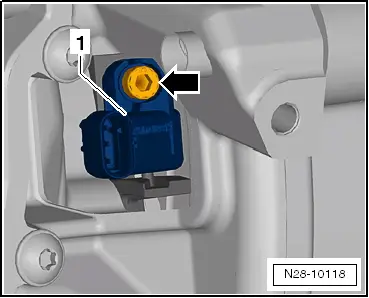

–  Unscrew bolt -arrow- using 4 mm socket insert -T10370-. –  Remove engine speed sender -G28--1-. Installing Install in reverse order. In the process, note the following: Secure bolt -arrows- against falling.

Specified torque:

Component	Specified torque
Engine speed sender -G28-	8 Nm
Pendulum support	→ Running gear, axles, steering; Rep. gr.40
