Removing and installing turn signal light bulb
Removing and installing turn signal light bulb
  Note
The illustrations show removal and installation of the bulb for left turn signal -M18-. Removal and installation of bulb for right turn signal -M19- are analogous.
Removing:
–  Switch off ignition and all electrical loads, and pull out ignition key.

–  Remove turn signal light → Chapter.

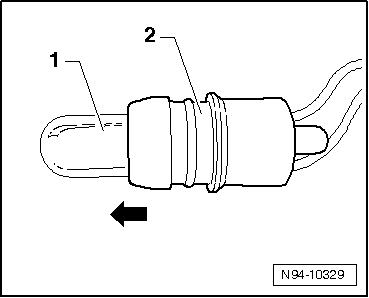

–  Pull glass-base bulb -1- in a straight line out of bulb holder -2-.
Bulb fur turn signal: 12 V, W 5 W
Installing:
Installation is carried out in the reverse sequence.
  N94-10329
