Jump Starting: Service and Repair
Battery, jump starting
Car with good battery must not be running when connecting jumper cables

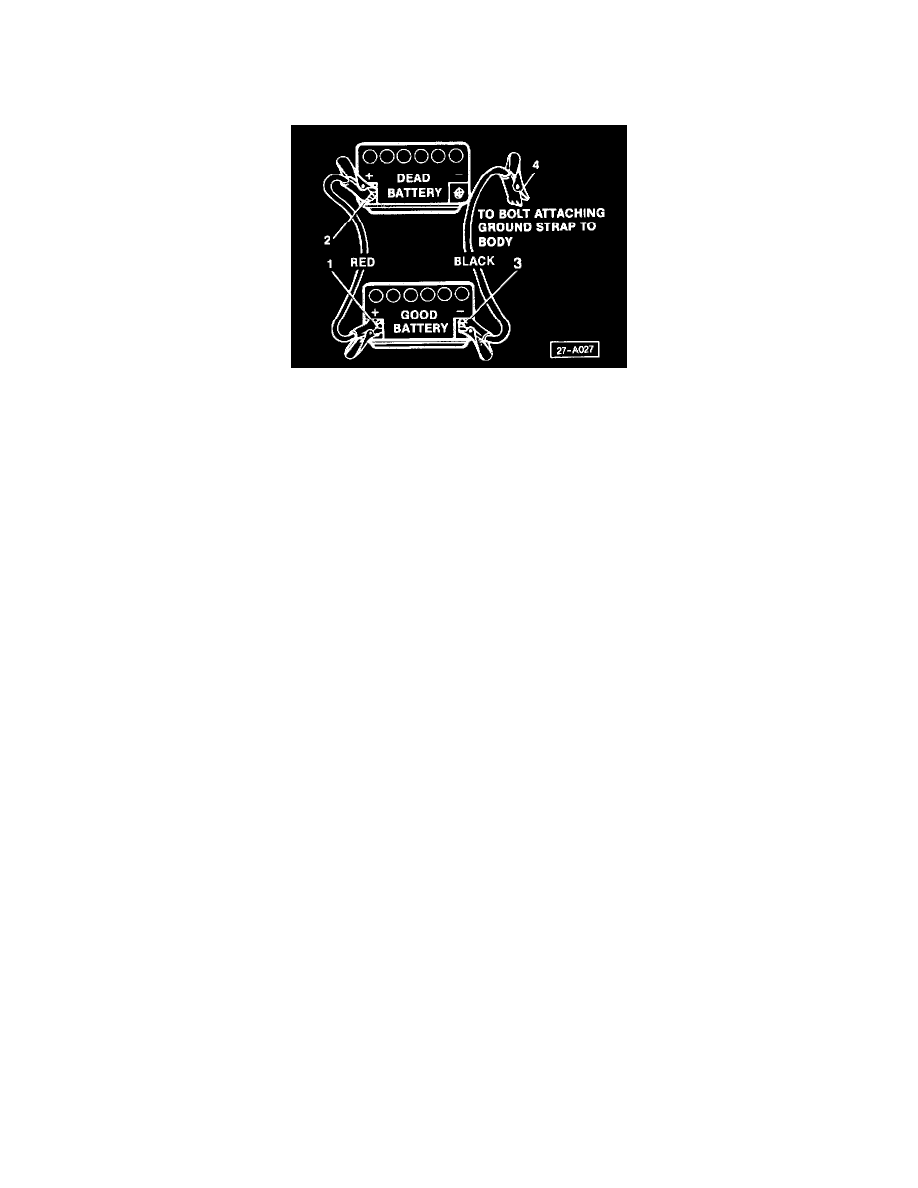

- connect jumper cables in following order:
1- one end of positive cable to + post of good battery
2 - other end of positive cable to + post of dead battery
3 - one end of negative cable to - post of good battery
4 - other end of negative cable to bolt attaching ground strap to body
- start car which has good battery first
- next start car which has dead battery
- disconnect jumper cables in reverse order
