Fuse Block > < Relay Box|Locations|Page 3980

Vanagon Syncro AWD L4-2109cc 2.1L (1987)

  • Power and Ground Distribution
  • Fuse
  • Component Information
  • Locations

Page 1
background image

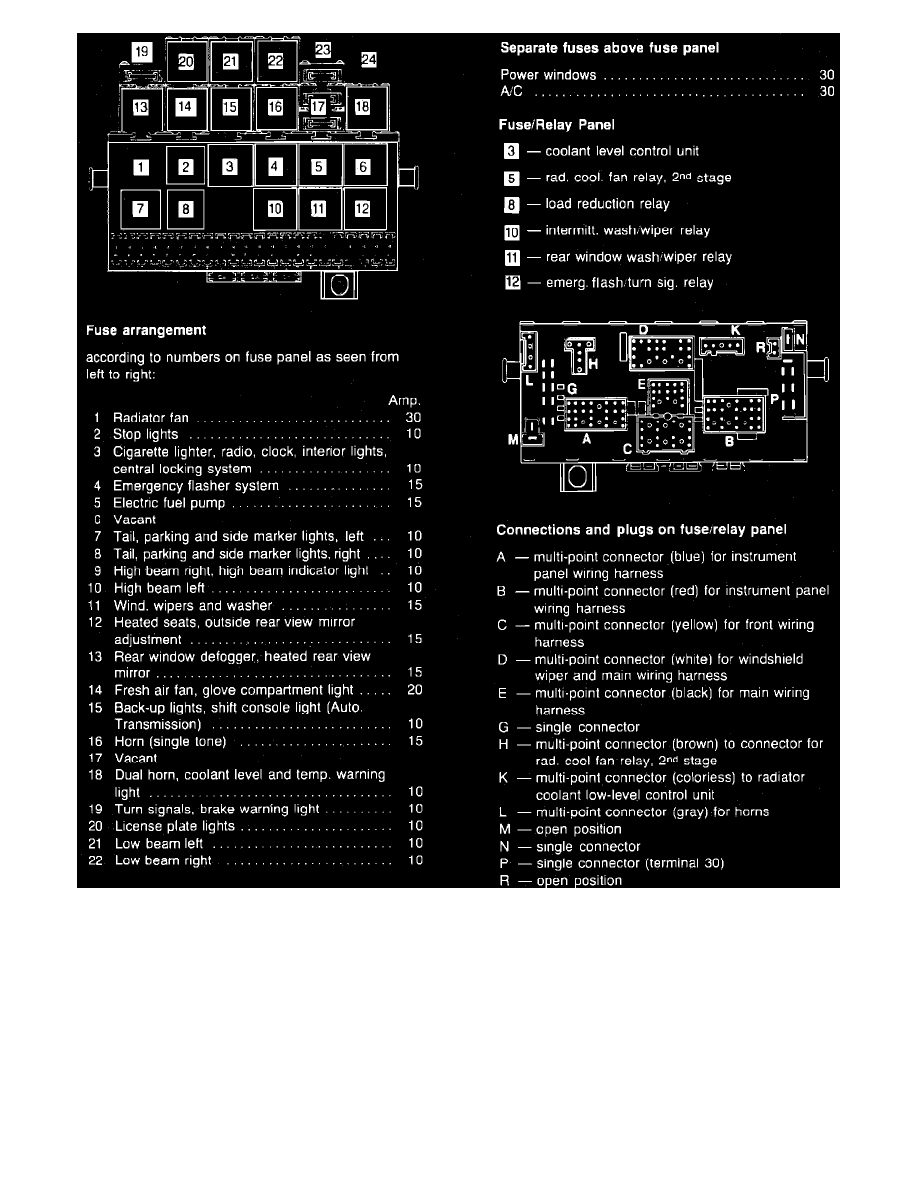

Fig. 101 Fuse & Relay Panel
