V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1039

Page 40
background image

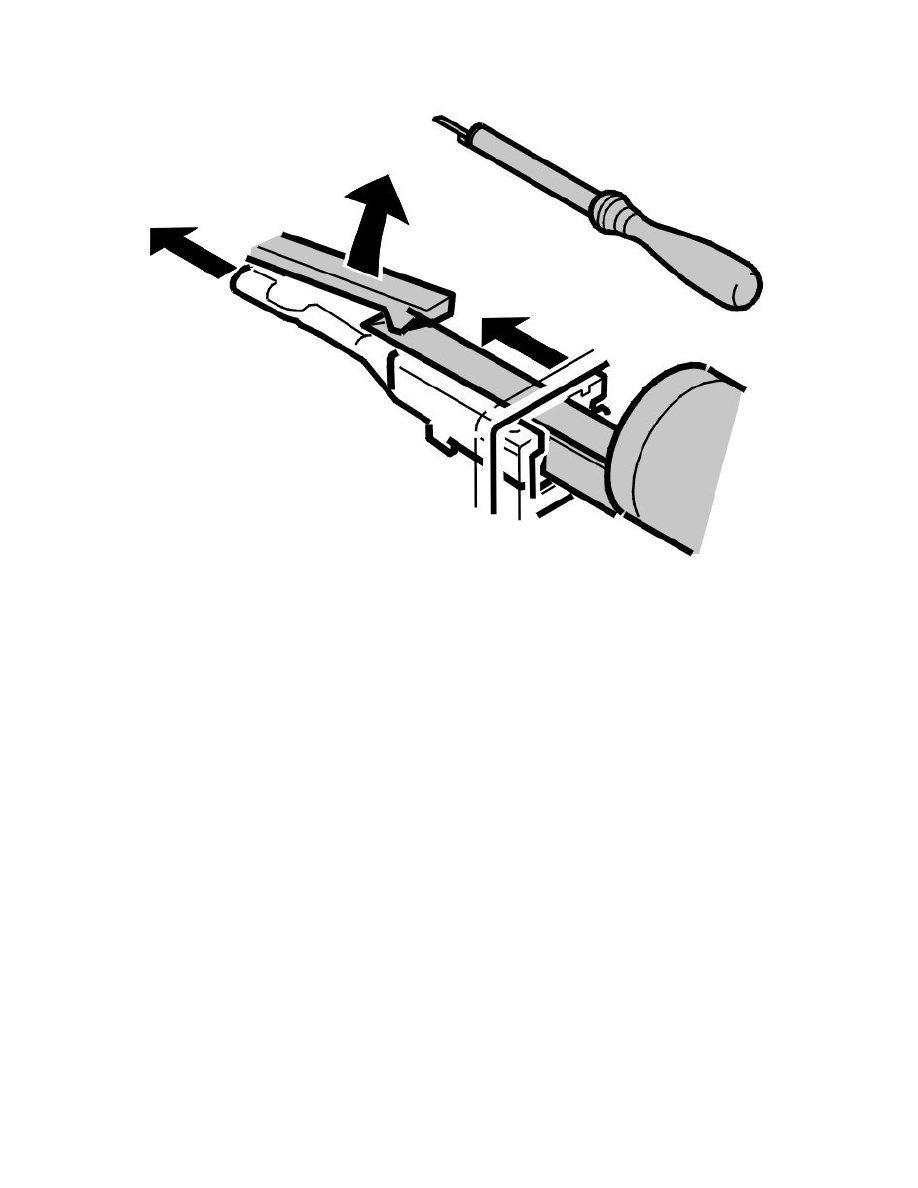

Tools and Equipment/951 2639 Terminal Removal Tool  to remove the primary lock, see graphic.
At the same time pull the cable carefully backwards.

Alternatively use tool: 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool  see graphic.

Note! Tool 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool  can only be used for socket housings.

Assembly

Assembling primary lock

Check that the cable terminal is undamaged.
Press the cable terminal into the housing.
Check that the seal is correctly positioned and that the cable terminal is properly locked by pulling carefully on the cable.

Assembling secondary lock

Press the secondary lock into place.

Connector Sealed, Type 3

Connector sealed, type 3

Special tools:

951 2637 Terminal removal tool  See: Tools and Equipment/951 2637 Terminal Removal Tool

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.

Disassembly

Disassembling secondary lock
