Control Module HVAC: Service and Repair

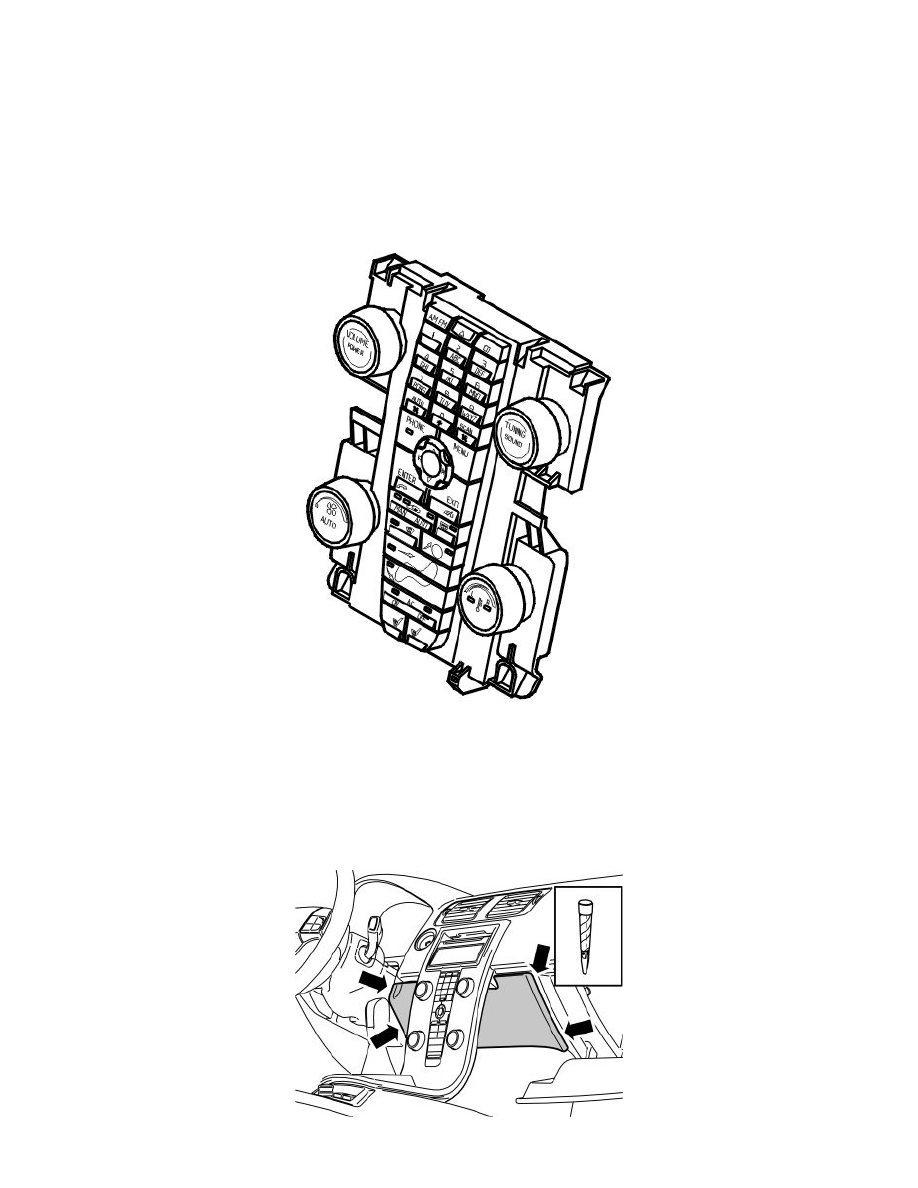

Climate control module (CCM)

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information is always correct.

Preparatory work

Important information

The unit is a complete control module that has many different functions in addition to controlling the climate functions.

Removal

Removing center console

Ignition off.

Remove the panel inside the center console. It is secured with 4 hidden clips.
