Page 35
background image

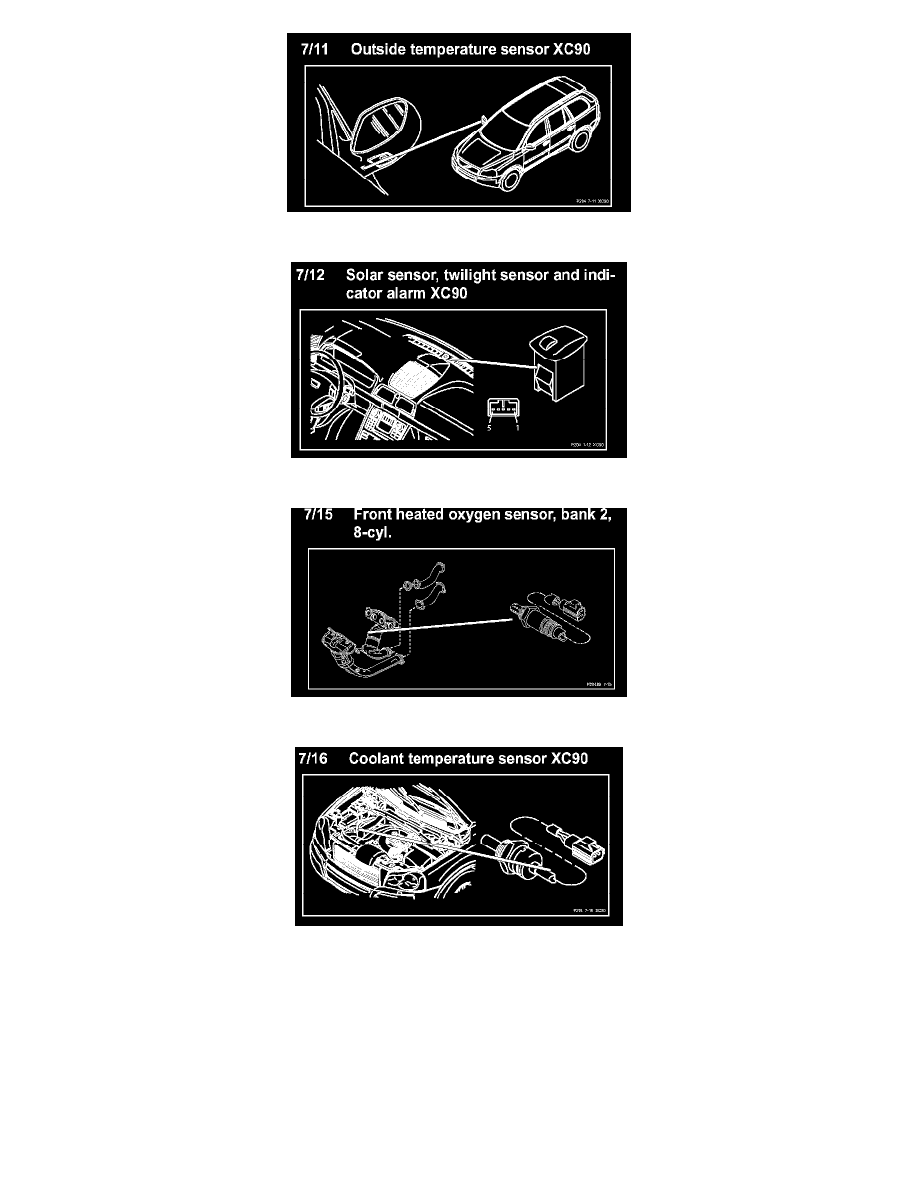

7/11 Outside Temperature Sensor

7/12 Solar Sensor, Twilight Sensor And Indicator Alarm

7/15 Front Heated Oxygen Sensor, Bank 2

7/16 Coolant Temperature Sensor

Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Emission Control Systems > Air Injection Pump Relay > Component Information > Diagrams > Diagram Information and Instructions > Page 1842
