XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2450

Page 27
background image

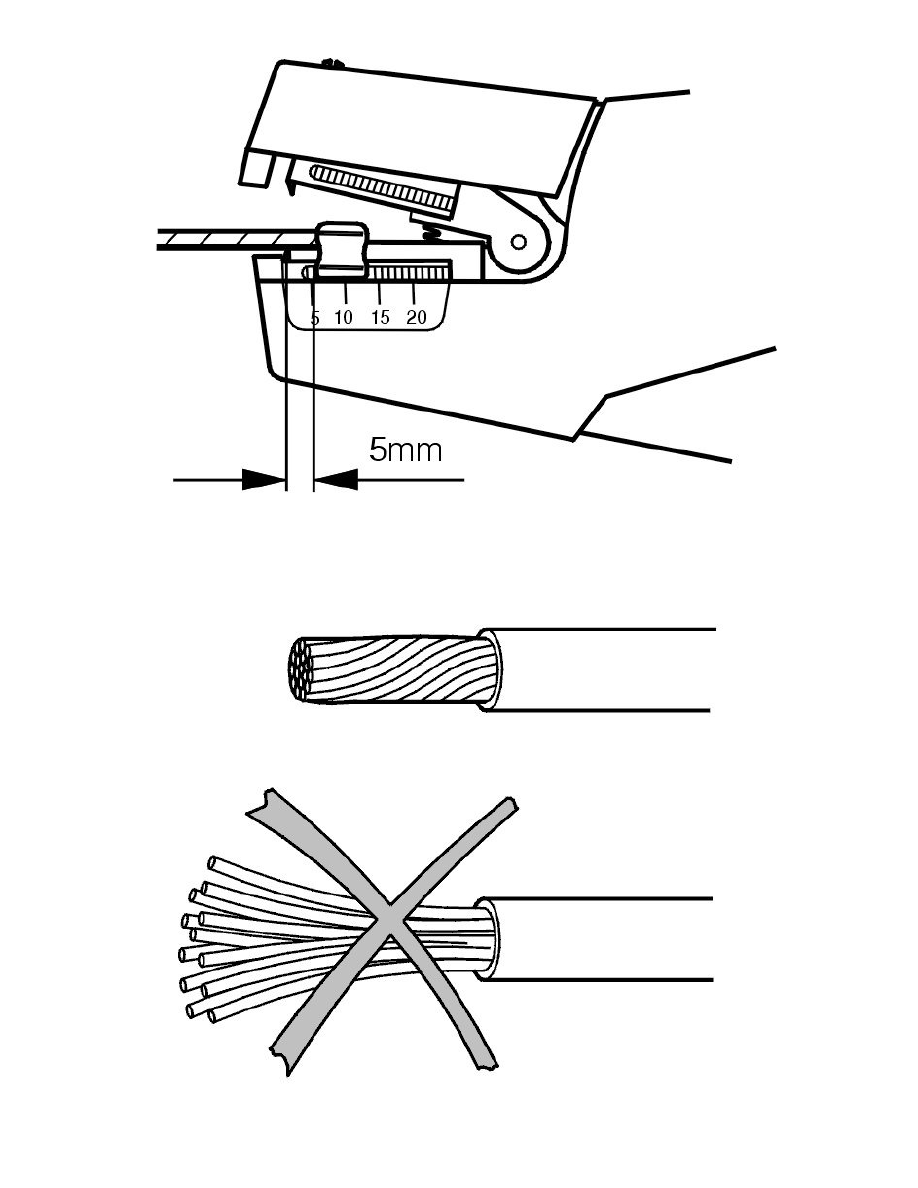

Peel 5.0mm/0.2 in of the insulation off the 4 cable ends (13/64 inches) using pliers951 2620 Stripping tool See: Tools and Equipment/951 2620
Stripping Tool.

Twist the strands on the stripped wire ends. Do NOT forget to do this on all four wire ends.
