Page 46
background image

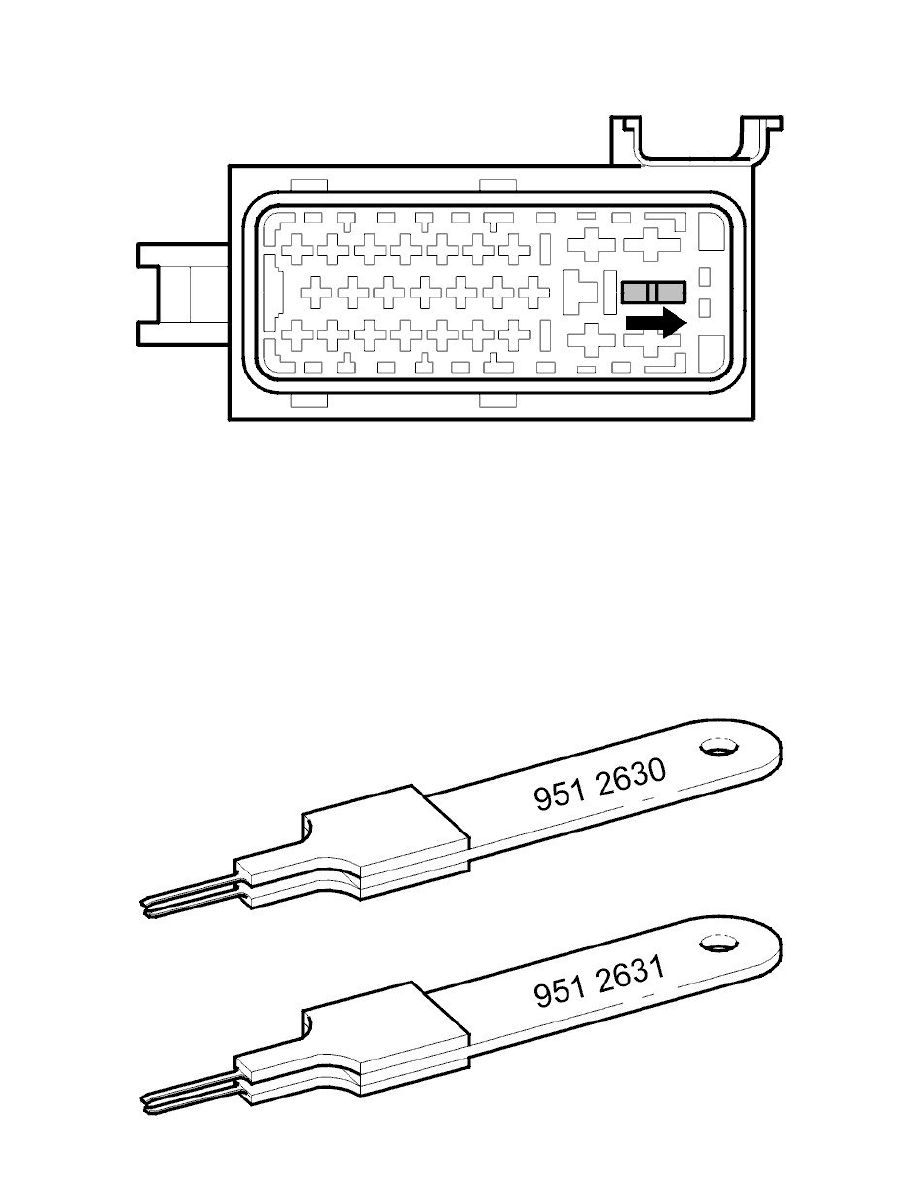

Slide the catch in the direction of the arrow, as illustrated.

Caution! Disconnect and work with only one cable at a time to minimize the risk of mixing them up.

Primary lock

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2469
