XC90 AWD V8-4.4L VIN 85 B8444S (2005)

Relays and Modules > Relays and Modules - Transmission and Drivetrain > Relays and Modules - Differential > Control Unit, Differential Lock > Component Information > Diagrams > Diagram Information and Instructions > Page 2509

Page 86
background image

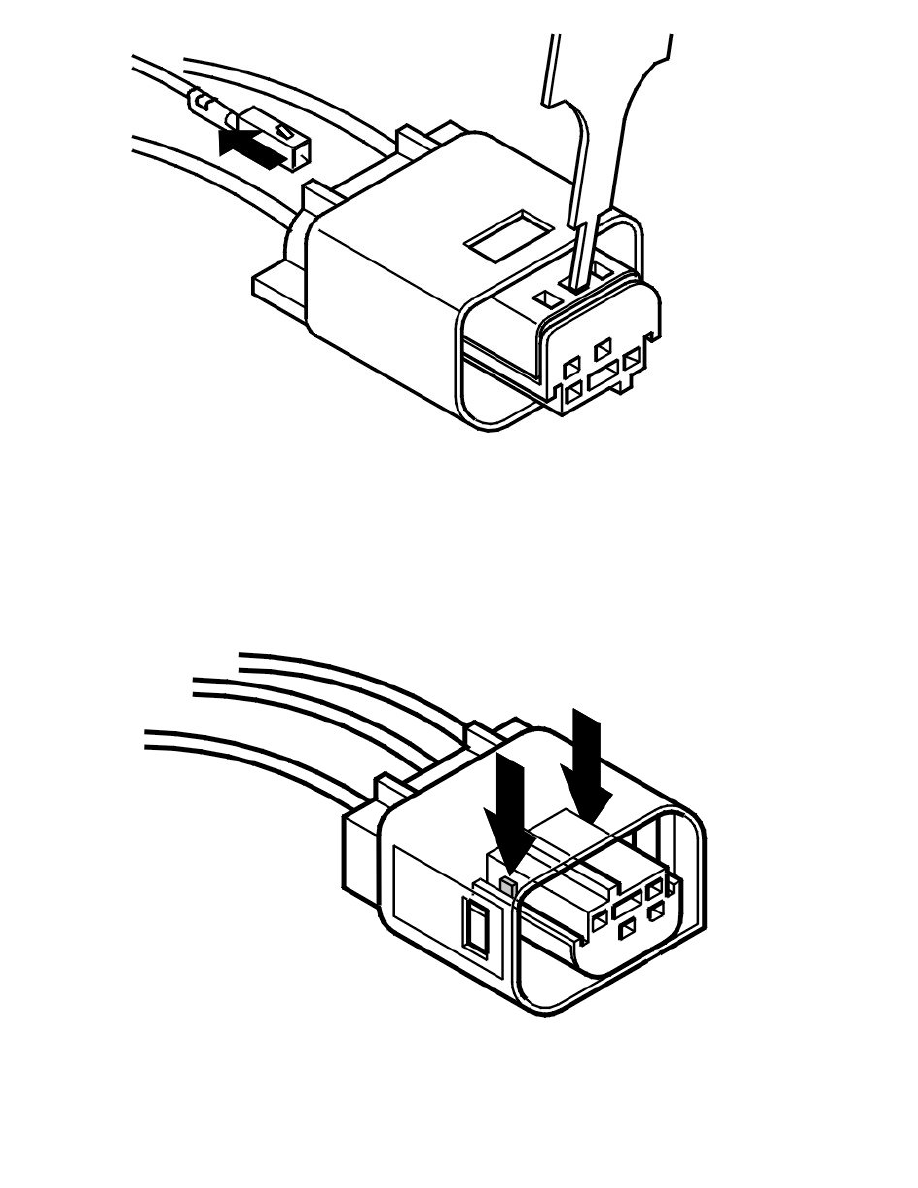

Adjust the lock pins using an electrician's screwdriver and press up the secondary lock, as illustrated.

The primary lock

Use tool 951 2637 Terminal removal tool See: Tools and Equipment/951 2637 Terminal Removal Tool to press down the cable terminal locking tab, as
