Removing and installing supplementary air heater elementZ35
Removing and installing supplementary air heater element -Z35-

Removing
–  Remove the heat exchanger and take the heat exchanger out of the bottom section of the air distribution housing → Chapter.

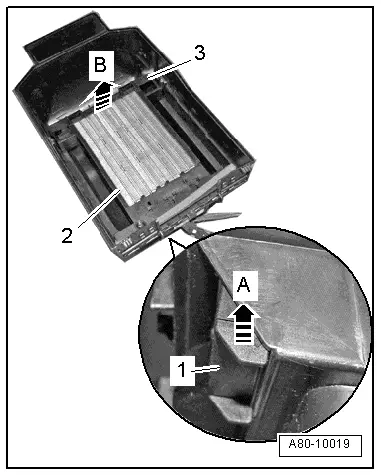

–  Press -arrow A- the retaining elements -3- upwards slightly on the left and right on the outside.
–  Take -arrow B- the heating element -1- at the front out of the bottom section of the air duct housing -2-.
Installing
Install in reverse order, paying attention to the following:
–  Fit the heat exchanger → Chapter.
–  Check operation in the „Guided fault-finding“ function, TDI engine → Vehicle diagnostic tester.
  A80-10019
