A1
Power transmission
5-speed manual gearbox 02T
Gearbox mechanics,operation, construction,diff.
Securing gearbox to engine and gearbox support
Securing gearbox to engine and gearbox support
Securing gearbox to engine and gearbox support
Special tools and workshop equipment required
t

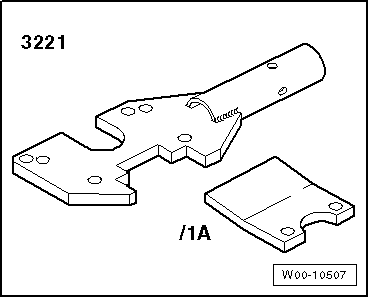

Gearbox support -3221-
t
Engine and gearbox support -VAS 6095- or support clamp -VW 313-

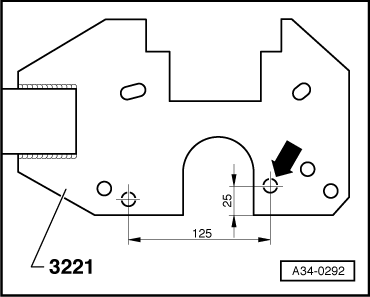

Preparing gearbox support -3221- for manual gearbox 02T:
–
Make an additional Ø 11 mm drilling
-arrow-
in gearbox support -3221- according to dimensions shown (dimensions in mm).
Procedure
–
Bolt gearbox support -3221- to gearbox housing
-arrows-
as shown in illustration.
