Transporting gearbox
Transporting gearbox
Special tools and workshop equipment required

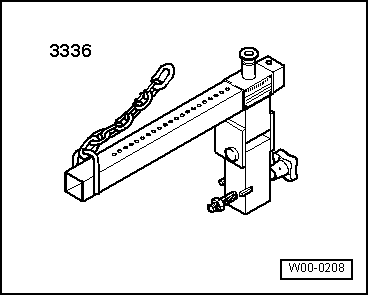

t  Gearbox lifting tackle -3336-
  W00-0208
t  Workshop hoist -VAS 6100-
  W00-1214
Procedure
–  Bolt gearbox lifting tackle -3336- to clutch housing.
  A34-0320
–  Set support arm on sliding bracket by means of locking pin -arrow-.
l  Number of holes visible = 6
–  Lift gearbox with workshop hoist -VAS 6100- and gearbox lifting tackle -3336-.
  A34-0583
