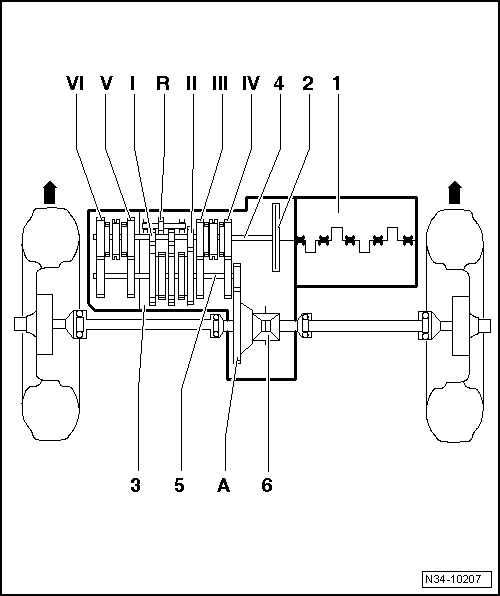

Transmission layout

Transmission layout

Note

-Arrows- point in direction of travel.

1 -

Engine

2 -

Clutch

3 -	Manual gearbox

4 -	Input shaft

5 -	Output shaft

6 -	Differential

I -

1st gear

II -

2nd gear

III -

3rd gear

IV -

4th gear

V -

5th gear

VI -

6th gear

R -	Reverse gear

A -	Final drive
