Servicing accelerator mechanism

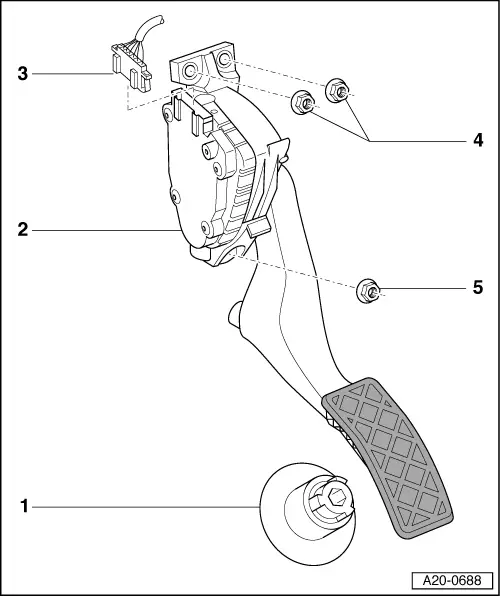

Servicing accelerator mechanism
1 - Accelerator pedal stop
q   Vehicles with left-hand drive only
q   Adjusting → Chapter
2 - Accelerator pedal module
q   With accelerator pedal position sender -G79- and accelerator pedal position sender -G185-
q   Removing and installing → Chapter
3 - Electrical connector
4 - 10 Nm
5 - 10 Nm
