Heating, Air Conditioner
Servicing heating
Removing and installing footwell vent

A80-0077

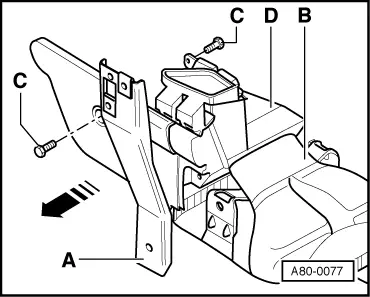

  • ‒ → Remove driver's storage compartment and tunnel brace -A-.

=> Inner Body Assembly; Repair group 68

  • ‒ Remove connection pieces between footwell vent and rear heating duct -B-.
  • ‒ Remove bolts -C-.
  • ‒ Remove footwell vent -D- in direction of driver's footwell (arrow).
