A3 Mk1

Running gear, Front-wheel drive and four-wheel drive
Wheel alignment
Adjusting rear axle toe - Four-wheel drive

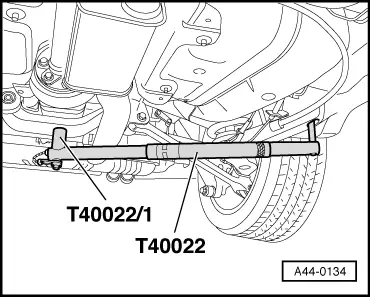

A44-0134
  • ‒ → Engage special tool T40022 with T40022/1 at rear subframe as well as in elongated hole at trailing arm.

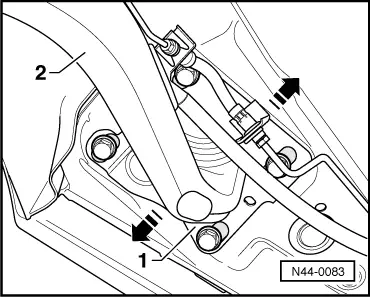

N44-0083
  • ‒ → Consecutively screw out all bolts of mounting bracket -1- and loosely screw in new ones.
  • ‒ Move mounting bracket in transverse direction -arrows-.
  •     2 -    Trailing arm

A44-0134
  • ‒ → Set specified toe by turning threaded rod on special tool T40022.
  • ‒ Tighten bolts of mounting bracket.

Tightening torque

Component

Nm

Mounting bracket to body

75 1)

    1)    Replace bolts
