Overview - selector mechanism
Overview - selector mechanism
t  → Chapter „Exploded view - gear knob and gear lever boot“
t  → Chapter „Removing and installing gear knob with gear lever boot“
t  → Chapter „Separating gear lever boot from gear knob“
t  → Chapter „Exploded view - gear lever and selector housing on vehicles up to model year 2008“
t  → Chapter „Exploded view - selector mechanism on vehicles from model year 2008 onwards“
t  → Chapter „Dismantling and assembling selector mechanism on vehicles from model year 2008 onwards“
t  → Chapter „Removing and installing selector mechanism“
t  → Chapter „Exploded view - gear selector cable and gate selector cable up to model year 2007“
t  → Chapter „Exploded view - gear selector cable and gate selector cable from model year 2008 onwards“
t  → Chapter „Removing and installing gear selector cable and gate selector cable“
t  → Chapter „Adjusting selector mechanism“

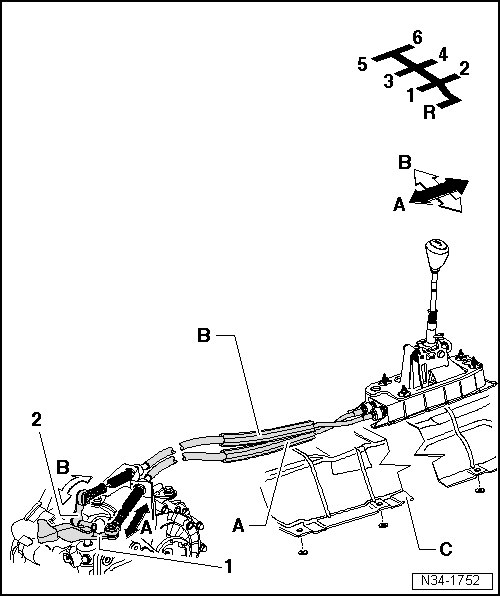

-Arrow A- gear selection movement
-Arrow B- gate selection movement
A - Gear selector cable (gear selection movement)
B - Gate selector cable (gate selection movement)
C - Heat shield
q   Detach before removing selector mechanism
1 - Gearbox selector lever
2 - Gate relay lever
