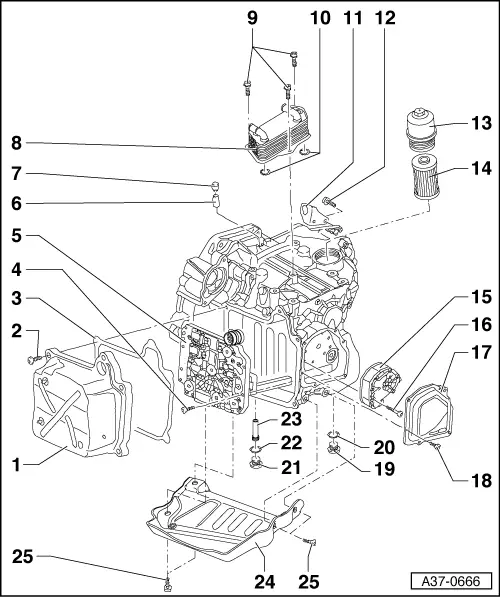

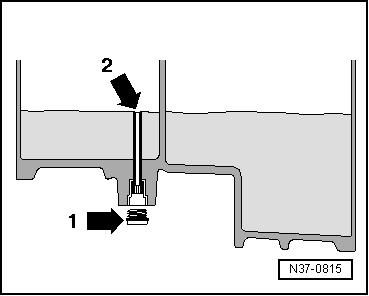

| Exploded view - drain plug, inspection plug and overflow pipe for gear oil |
Note| Refer to items -19 … 23- (other items can be disregarded). |
| 19 - | Drain plug |
| q | Only on early versions; fitting location → Fig. |
| q | 45 Nm |
| 20 - | Seal |
| q | Renew |
| 21 - | Inspection plug |
| q | Fitting location → Fig. |
| q | 45 Nm |
| 22 - | Seal |
| q | Renew |
| 23 - | Overflow pipe |
| q | Fitting location → Fig. |
| q | 3 Nm |
