Removing and installing pendulum support
Removing and installing pendulum support

Removing

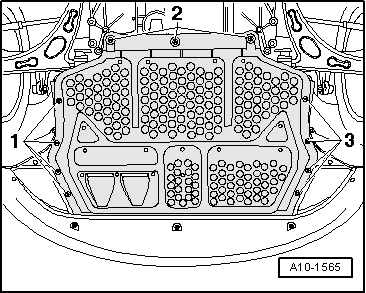

–  Remove noise insulation → General body repairs, exterior; Rep. Gr.50.
  Note
Depending on version, different types of noise insulation may be fitted.
  A10-1565
–  Remove bolts -1, 2, 3- and detach pendulum support.
Installing
Installation is carried out in reverse sequence; note the following:
l  Tightening torques → Chapter „Exploded view - assembly mountings“
  Note
Renew bolts which are tightened by turning through a specified angle.

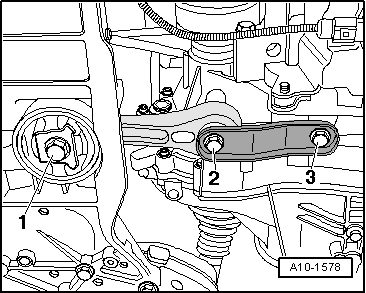

–  First secure pendulum support to gearbox (bolts -2- and -3-), then on subframe -1-.
–  Install noise insulation → General body repairs, exterior; Rep. Gr.50.
  A10-1578
