Removing and installing intake manifold flap motorV157 - vehicles with engine codes BMN, BUY
Removing and installing intake manifold flap motor -V157- - vehicles with engine codes BMN, BUY

Removing

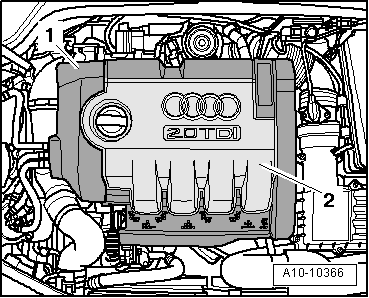

–  Lift off outer engine cover panel -1- by pulling up evenly.
  A10-10366

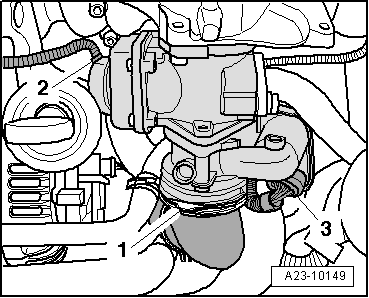

–  Remove air intake hose at intake manifold flap motor -V157- by lifting retaining clip -1- slightly.
–  Unplug electrical connector for intake manifold flap motor -V157--item 3-.
  Note
Disregard -item 2-.
  A23-10149

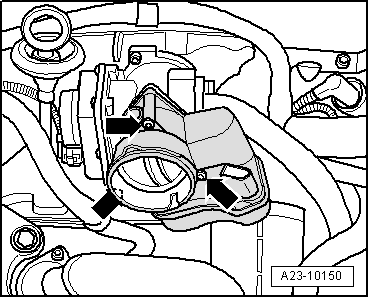

–  Remove bolts -arrows- and detach intake manifold flap motor -V157-.
Installing
Installation is carried out in the reverse order; note the following:
  Note
Renew O-ring.
Tightening torque
  A23-10150
ComponentNm
Intake manifold flap motor -V157- to exhaust gas recirculation valve -N18-10
