A4 Cabriolet Mk2

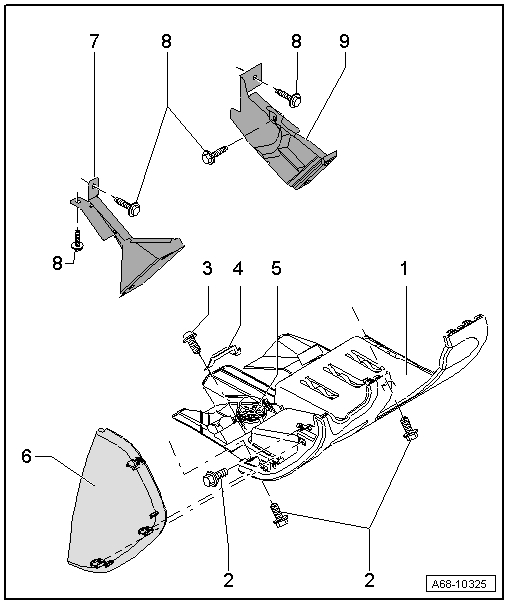

| Exploded view of storage compartment (driver side) with knee bolster / knee airbag |
| Exploded view |
| 1 - | Storage compartment (driver side) |
| q | As knee bolster - country-specific version |
| q | As knee airbag - country-specific version |
| q | Removing → Chapter |
| 2 - | Bolts |
| q | 3x |
| q | 3.5 Nm |
| 3 - | Bolt |
| q | 1.5 Nm |
| 4 - | Retaining bracket |
| 5 - | Additional loudspeaker |
| q | Depending on equipment version |
| q | Removing → Chapter |
| 6 - | Dash panel end trim (left-side) |
| q | Removing → Chapter |
| 7 - | Support (left-side) |
| q | Renew if airbag has been triggered |
| 8 - | Bolts |
| q | 4x |
| q | 9 Nm |
| 9 - | Support (right-side) |
| q | Renew if airbag has been triggered |
