A4 Mk1

Automatic Gearbox 01VFWD and 4WD
Removing and installing gearbox
Mounting gearbox to assembly stand

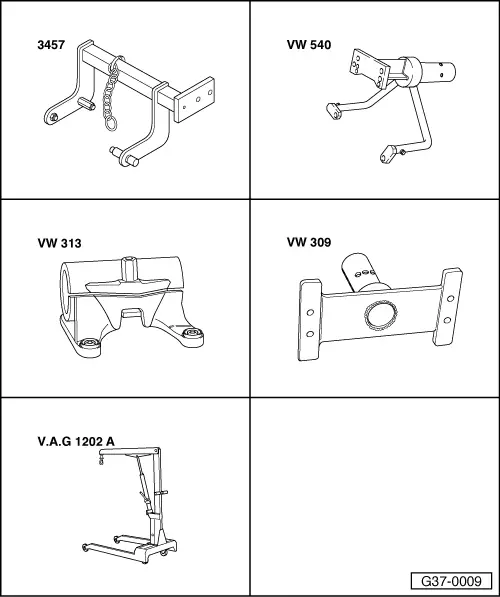

G37-0009

Special tools,
testers and auxiliary items required

  • ◆ Transport device 3457
  • ◆ Engine and gearbox bracket VW 540 (for FWD gearboxes only)
  • ◆ Support clamp VW 313
  • ◆ Holding plate VW 309
  • ◆ Workshop crane V.A.G 1202 A

N37-0487
  • ‒ → Secure transport device 3457 on mountings of gearbox housing and secure.
  • ‒ Bolt transport device onto retainer plate VW 309 and install into vice VW 313 with the aid of workshop crane.

For FWD gearboxes the engine and gearbox bracket VW 540 may also be used to secure at vice VW 313.

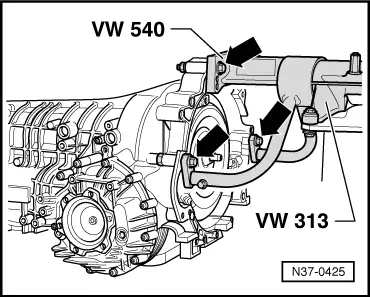

N37-0425
  • ‒ → Secure gearbox to engine and gearbox bracket VW 540 -arrows- and insert into vice VW 313.
Important:
The centre of gravity of the gearbox is outside the pivot centre of the support clamp. A second fitter has to hold the gearbox housing when it is being turned to prevent it from swinging round.

Note:

If the gearbox is full and it is to be tilted in the assembly stand with the oil pan pointing upwards, the vent holes for the gearbox housing and final drive must be sealed.
