This operation is only necessary if hexagon bolt for connecting upper links to wheel bearing housing cannot be removed.

Special tools and workshop equipment required

• ◆ V.A.G 1332 Torque wrench
• ◆ VAS 6085 Pressing-out tool

Removing

→ Pressing-out tool VAS 6085 components

•     1 -    Basic element
•     2 -    Adapter
•     3 -    Thrust bolt M10 x 1.25 x 95
•     4 -    Threaded sleeve
•     5 -    Press tool (length 78 mm)
•     6 -    Press tool (length 98 mm)
•     7 -    Press tool (length 118 mm)
•     8 -    Nut

Note:

Before starting work, apply polycarbamide grease, part no. G 052 142 A2 to thrust bolt, press tools and nut.

• ‒ Remove wheel.
• ‒ Pull wire of ABS speed sensor out of holder at brake caliper.

• ‒ → Unscrew nut -1-.

Bolts -3- and -4- are never to be slackened off.

• ‒ → Position basic element -1- on wheel bearing housing. In doing so, recesses engage beneath joints of links.

Note:

On inserting basic element, pay attention to bellows of links so as to avoid damage.

• ‒ Basic element -1- must be inserted such that end of bolt -arrow- is centred in hole in basic element.
• ‒ Screw home adapter -2- in basic element -1- to lock basic element.

• ‒ → Screw home threaded sleeve -4- in basic element -1-.
• ‒ Insert press tool -5- in threaded sleeve -4-.

• ‒ → Screw nut -8- onto threaded sleeve -4- and turn as far as it will go, thus pressing out bolt.

Note:

Use can be made of a wrench or an impact screwdriver to turn nut -8-.

• ‒ Unscrew nut -8- from threaded sleeve -4-, take out press tool -5- and insert press tool -6- in threaded sleeve -4-.
• ‒ Repeat pressing process.
• ‒ If bolt can still not be taken out by hand, repeat pressing process with press tool -7-.

• ‒ Unscrew nut -8- from threaded sleeve -4-. Take out press tool and bolt.

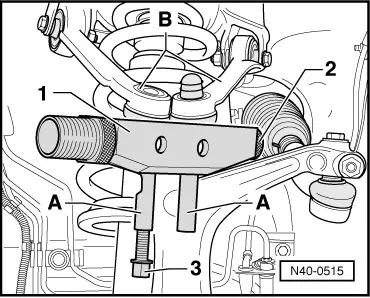

• ‒ → Screw thrust bolt -3- into one of the guides -A- in each case and press links -B- out of wheel bearing housing.
• ‒ Screw thrust bolt -3- out of guide -A- and release adapter -2-.
• ‒ Detach basic element -1- from wheel bearing housing.
