Special tools and workshop equipment required

• ◆ V.A.G 1331 Torque wrench
• ◆ V.A.G 1332 Torque wrench

Removing

• ‒ Remove noise insulation.

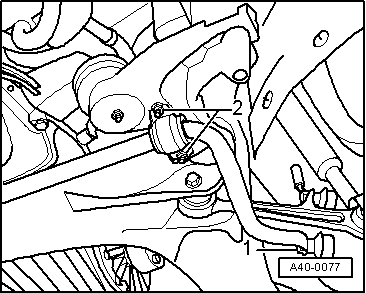

• ‒ → Unfasten nut -1-.
• ‒ Take connecting link out of anti-roll bar.
• ‒ Unscrew hexagon nuts -2- and detach anti-roll bar.

Installing

Notes:

• ◆ Anti-roll bar and mount must be free from grease.
• ◆ Arrow on connecting link points in direction of travel.
• ◆ If anti-roll bar is replaced, pay attention to running gear version.

→ Tightening torques:

Pay attention to modified connecting links and tightening torques
=>Page 40-19.

• ‒ Attach connecting link to anti-roll bar -1- (tightening torque 100 Nm).
• Always use new ribbed nut.
• ‒ Tighten hexagon nuts -2- to 25 Nm.
• Always replace.
• ‒ Install noise insulation.
