Unplugging electrical connector at coolant temperature display senderG2 - vehicles with 1.9 ltr. TDI engine
Unplugging electrical connector at coolant temperature display sender -G2- - vehicles with 1.9 ltr. TDI engine

Preparations
–  Pull oil dipstick -1- out of guide tube.
–  Unclip caps.
–  Unscrew nuts -arrows- and detach engine cover.
–  Remove insulation beneath cover.
–  Re-insert dipstick in guide tube.
  A10-1034
–  Unplug electrical connector -1-.
–  Remove bolt -2-.
–  Remove air pipe -arrows-.
  A10-1035
–  Unplug electrical connector -3- at coolant temperature display sender -G2-/-G62-.
  Note

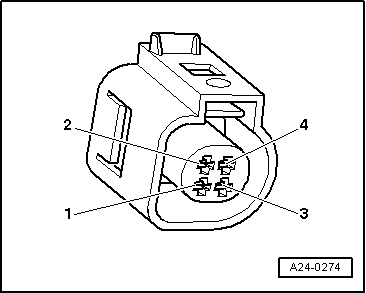

Disregard -Item 1-, -Item 2- and -Item 4-.
Installation is carried out in the reverse order; note the following:
  Note
t  Hose flanges and hoses for charge air system must be free from oil and grease before fitting.
t  Secure all hose connections with the correct type of hose clips (same as original equipment) → Parts catalogue.
  A15-0633
