Unplugging electrical connector at coolant temperature display senderG2 - vehicles with 2.5 ltr. TDI engine

Unplugging electrical connector at coolant temperature display sender -G2- - vehicles with 2.5 ltr. TDI engine

Procedure

–	Detach caps for engine cover.

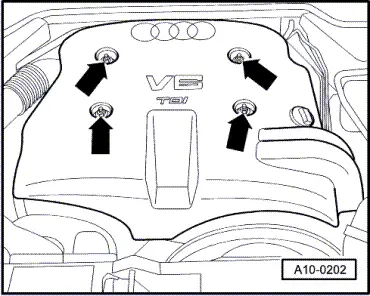

–	Unscrew engine cover -arrows-.

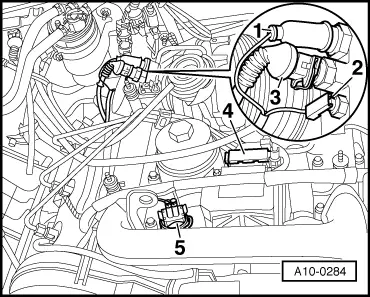

–	Unplug electrical connector -5- at coolant temperature display sender -G2-/-G62-.

Note

Disregard -items 1 … 4-.

Install in reverse order.
