Adjusting door > < Removing and installing door

A4 Mk3

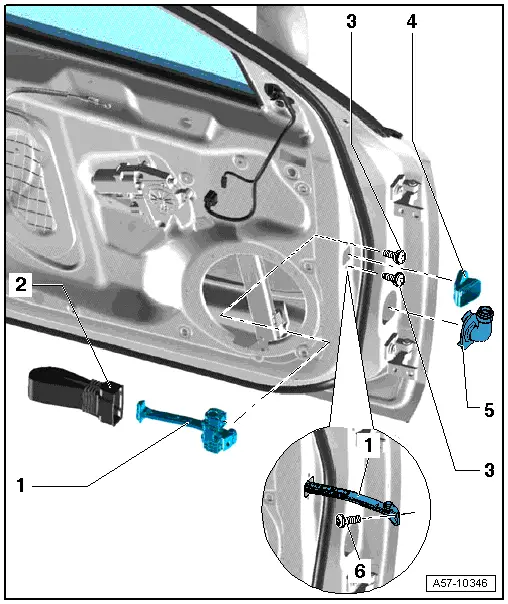

Exploded view - door arrester

Exploded view - door arrester
1 - Door arrester
2 - Rubber sleeve
3 - Bolt
q   8 Nm
4 - Cover
5 - Grommet
6 - Bolt
q   25 Nm


Removing
–  Move door window to „closed“ position.
–  Remove door trim → Rep. gr.70.
–  Remove lower loudspeaker → Rep. gr.91.

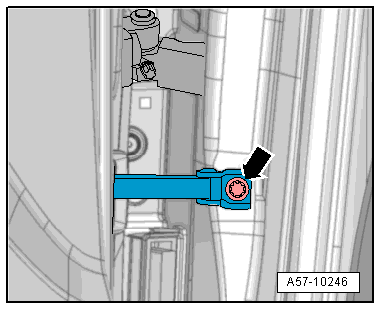

–  Unscrew bolt -arrow- for door arrester.
  A57-10246
–  Detach sealing piece -1- for door arrester from door opening.
–  Unscrew bolts -arrows- and take out door arrester -2- inwards.
  A57-10242

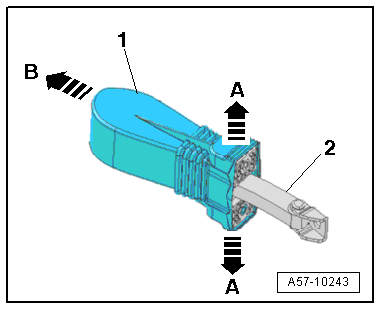

–  Pull rubber sleeve -1- on door arrester to the side slightly -arrows A-.
–  Detach rubber sleeve from door arrester -2--arrow B-.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
–  Install lower loudspeaker → Rep. gr.91.
–  Install door trim → Rep. gr.70.
  A57-10243

Adjusting door > < Removing and installing door
