A4 Mk3

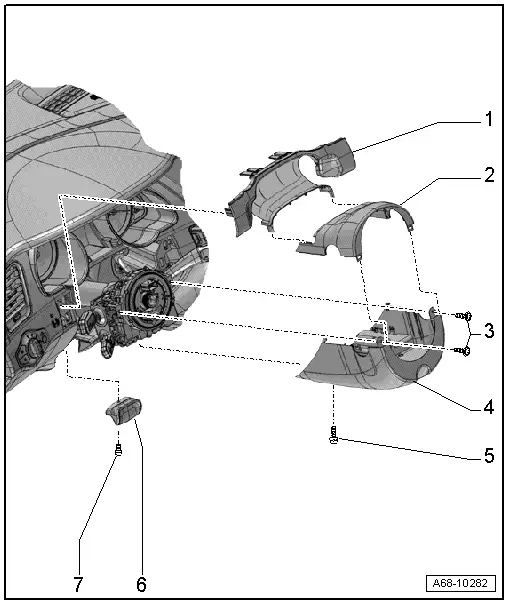

Exploded view of trim for steering column switch module |
1 - | Trim cover |
q | For instrument cluster |
q | Removing and installing → Chapter |
2 - | Trim (top) |
q | For steering column switch module |
q | Removing and installing → Chapter |
3 - | Bolts |
q | 2.0 Nm |
4 - | Trim (bottom) |
q | For steering column switch module |
q | Removing and installing → Chapter |
5 - | Bolt |
q | 2.0 Nm |
6 - | Handle |
q | For steering column adjustment |
q | Depending on equipment version |
7 - | Bolt |
q | 3 Nm |
