A4 Mk3

Removing and installing storage compartment
Removing and installing storage compartment
Removing
  WARNING
t  Observe safety regulations for pyrotechnic components → Chapter.
t  Before handling pyrotechnic components (e.g. unplugging the electrical connector) the mechanic must discharge static electricity by briefly touching the door striker plate, or similar.
–  Remove front seat:
t  Standard seat and sports seat (with manual adjustment) → Chapter „Removing and installing front standard seat (with manual adjustment)“.
t  Standard seat, sports seat (with electric adjustment), convenience seat and super sports seat → Chapter „Removing and installing front standard seat (with electric adjustment)“.
–  Attach front seat to seat repair stand -VAS 6136- → Chapter.

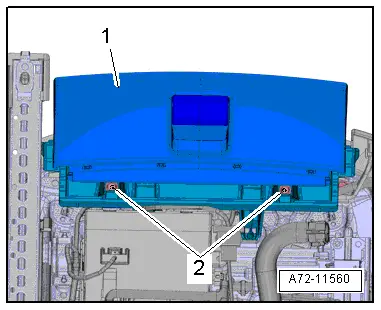

–  Open storage compartment -1- and unscrew bolts -2-.
  A72-11560

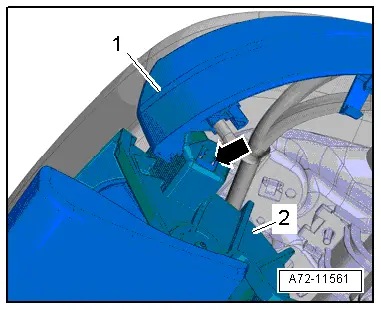

–  Release fastener -arrow- at storage compartment -2- and pull storage compartment slightly downwards off trim (sill side) -1-.
  A72-11561
–  Push storage compartment -1- in direction of -arrow- and disengage catch -bottom arrow- of storage compartment from upper frame of seat pan -2-.
–  Detach storage compartment from upper seat pan frame.
Installing
  WARNING
t  Observe safety regulations for pyrotechnic components → Chapter.
t  Before handling pyrotechnic components (e.g. plugging in the electrical connector) the mechanic must discharge static electricity by briefly touching the door striker plate, or similar.
Install in reverse order of removal. Note the following:
  Note
Make sure electrical connectors are fitted correctly (as far as stop) and engage audibly.
  WARNING
The battery must be connected with the ignition switched on. If pyrotechnic components (e.g. airbag or belt tensioner) are inexpertly repaired, this may result in unwanted triggering after connecting the battery. There must not be anyone in the vehicle while you are connecting the battery.
–  With ignition switched on, connect battery earth wire → Electrical system; Rep. gr.27.
  Note
If the airbag warning lamp -K75- indicates a fault following installation, you must interrogate, erase and then re-interrogate the event memory → Vehicle diagnostic tester.
Tightening torques → Chapter
  A72-10810
