A4 Mk3

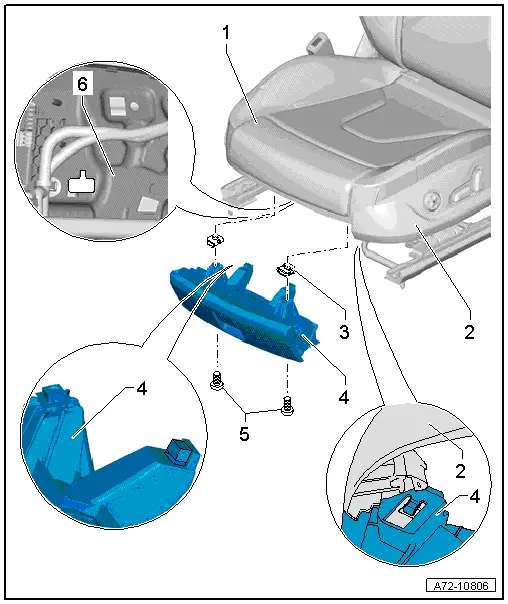

Exploded view of storage compartment |
1 - | Front seat |
2 - | Trim (sill side) |
3 - | Speed nut |
q | 2x |
4 - | Storage compartment |
q | Different versions |
t | For front standard seat and sports seat (with manual adjustment) |
t | For front seats - standard seat, sports seat (with electric adjustment), convenience seat and super sports seat |
q | Removing and installing → Chapter |
q | Cannot be dismantled and is only available as a complete replacement unit |
q | For correct version refer to → Electronic parts catalogue |
5 - | Bolt |
q | 2x |
q | 8 Nm |
6 - | Upper seat pan frame |
