A4 Mk3
Body
General body repairs, interior
Seat frames
Rear seat
Removing and installing trim for backrest bracket
Removing and installing trim for backrest bracket
Removing and installing trim for backrest bracket
Removing
–
Remove centre armrest
-3-
→ Chapter
.
–

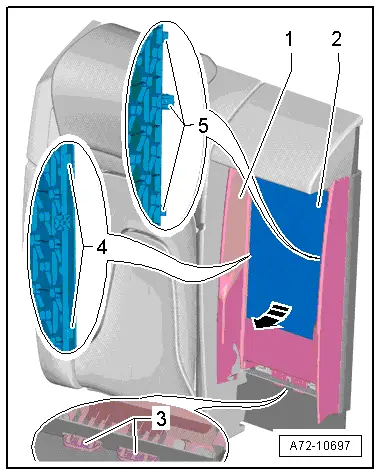

Press padding with cover
-1-
to side and unscrew bolt
-4-
for trim for backrest bracket
-2-
.
–
Grasp hold of bottom edge of trim for backrest bracket
-2-
and pull it as far as possible off cover for backrest bracket
-1-
in direction of
-arrow-
.
–
When doing so, disengage retaining tabs
-4-
and
-5-
.
Note
Ignore
-item 3-
.
–
Pull trim for backrest bracket
-1-
off cover for backrest bracket
-2-
in direction of
-arrow-
and at the same time disengage catches
-top arrows-
.
–
Take out trim for backrest bracket.
Installing
Caution

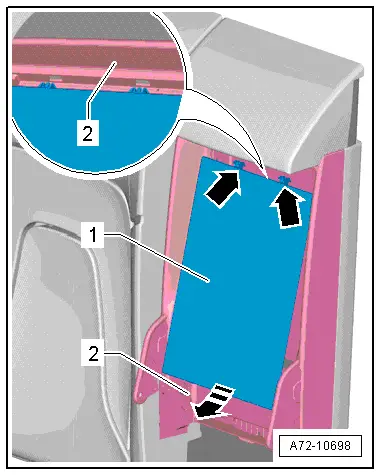

Catches on top of trim for backrest bracket could be damaged during removal.
–
Check trim for backrest bracket
-1-
for damage in area of catches
-top arrows-
and renew if necessary.
Perform remaining installation in reverse order of removal.
