Audi Workshop Service and Repair Manuals > A4 Mk3 > Body | General body repairs, interior | Trim, noise insulation | Door trim (front)

Removing and installing trim panel

Note

Removal and installation are described for the driver's door. The procedures are similar for the other doors.

Removing

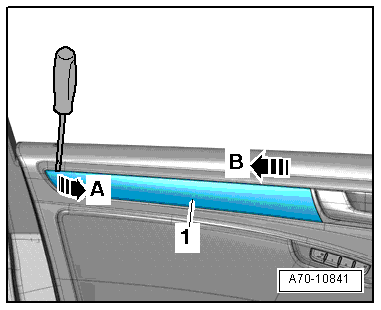

–	Starting at rear, prise trim panel -1- off door trim using a screwdriver -arrow A-.

–	Detach trim panel from interior door handle towards rear in direction of -arrow B-, using a screwdriver to raise trim panel (front) again slightly so that hook inside trim panel can be detached from cut-out in door trim.

Installing

Installation is carried out in the reverse order; note the following:

–	First engage trim panel at interior door handle and then press onto door trim until it engages audibly.
