Removing and installing right footwell vent temperature sender -G262-
Note
The right footwell vent temperature sender -G262- is only fitted on vehicles with an air conditioner of the „Deluxe“ type.
Removing
–
Move the front passenger's seat to the rearmost position.
–
Switch off the ignition.
–
Remove the glove compartment
→ General body repairs, interior; Rep. gr.68
.
–

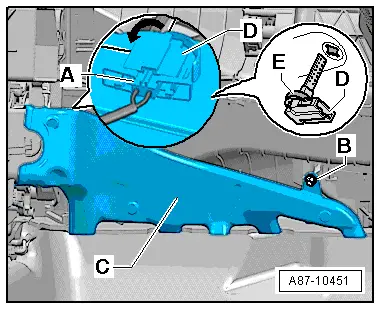

Remove the right (front passenger side) footwell vent
-C-
→ Chapter
.
–
Unplug the connector
-A-
.
–
Give the sender
-D-
a 90° turn and pull it out of the right footwell vent
-C-
.
Installing
Install in reverse order; paying attention to the following:
–
Check the seal
-E-
for damage and proper attachment.
–
Re-install all the parts removed in reverse order.
–
Interrogate the event recorder of the operating and display unit, Climatronic control unit -J255- and erase any faults displayed
→ "Guided fault-finding" function of vehicle diagnostic, testing and information system VAS 5051
.
