A4 Mk3

Removing and installing combustion air blowerV6
Removing and installing combustion air blower -V6-
Special tools and workshop equipment required
t  Release tool -VAS 1978/18-
Preparation
–  Switch off ignition (and auxiliary heater).
–  Removing auxiliary heater → Chapter
–  Detaching add-on components of auxiliary heater → Chapter
–  Dismantling auxiliary heater → Chapter
Removing
–  Remove the flame monitor -G64- → Chapter.

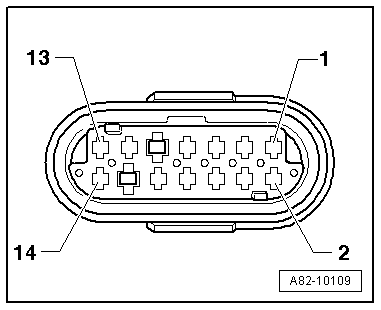

–  Eject the wire of the combustion air blower -V6- from the 14-pin connector (black), contacts 13 and 14 → Chapter.
–  Detach the combustion air blower -V6- → Chapter.
Installing:
Install in reverse order; paying attention to the following:
  Note
Before installing the combustion air blower -V6-, replace the moulded gasket (between combustion air blower -V6- and heater).
  A82-10109
