A4 Mk3

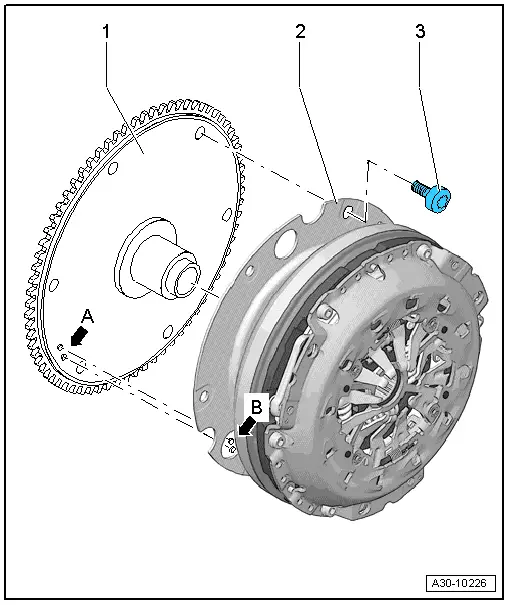

| Exploded view - clutch module |
Note| Servicing clutch module -2- → Servicing 6-speed manual gearbox 0B1, front-wheel drive; Rep. gr.30 |
| A - | Locating pins |
| q | Not fitted in all vehicles |
| q | When clutch module -2- is bolted onto drive plate -1-, locating pins -A- (if provided) must engage in locating holes -B- |
| B - | Locating hole |
| q | When clutch module -2- is bolted onto drive plate -1-, locating pins -A- (if provided) must engage in locating holes -B- |
Caution
|
| 1 - | Drive plate |
| q | 4-cylinder engine: 3 holes with threaded sleeves |
| q | 6-cylinder or 8-cylinder engine: 6 holes with threaded sleeves |
| q | With needle bearing |
| q | Removing and installing → Engine, mechanics; Rep. gr.13 |
| 2 - | Clutch module |
| q | With flange for drive plate |
| q | Components: dual-mass flywheel, clutch plate and clutch pressure plate |
| q | Removing and installing → Servicing 6-speed manual gearbox 0B1, front-wheel drive; Rep. gr.30 |
| q | Servicing → Servicing 6-speed manual gearbox 0B1, front-wheel drive; Rep. gr.30 |
| 3 - | Bolt |
| q | 60 Nm |
| q | Secures dual-mass flywheel to drive plate |
| q | 4-cylinder engine: 3x |
| q | 6-cylinder or 8-cylinder engine: 6x |
| q | Always renew |
| q | Follow correct tightening sequence → Chapter |
